4-Ch HD/SD-SDI Optical Transceiver (RV641P)
-

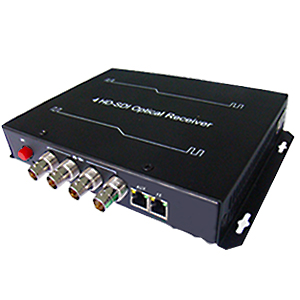

The RV641P is a high performance, and reliable, 4-channel HD-SDI optical transceiver, which perform real-time, loss-free and high-quality SDI transmission (2 embedded audio channels embedded in each SDI), and one bi-directional RS485 data over an optical line. Besides, RV641P provides one 10M/100M Ethernet interface and optional audio/contact closure/RS422/RS232 data transmission, which can be widely used in TV live broadcast, high-definition video conference, high-definition video monitoring, intelligent transportation system and public security system.
The RV641P includes desktop equipment and rack mounting chassis, the desktop equipment includes a transmitter named RV641PT and a receiver named RV641PR; The rack mounting chassis is used as the centralized HD-SDI receiver, adopts RV600C chassis with 19 inch width, 4U height, and with 16 HD-SDI optical receive card RV641PRK (hot- pluggable) and 1 management card, supports CLI command and SNMP_V1&V2 protocol to perform perfect management functions.
- Comply with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s
- RV641PT: four HD/SD-SDI input (BNC)
- RV641PR/RV641PRK: four HD/SD-SDI output (BNC)
- Two audio channels embedded in each SDI signal
- One 10M/100M Ethernet interface
- One bi-directional RS485 channel, half duplex, up to 115.2Kb/s baud rate
- One auxiliary channel, which can be 2-channel bi-directional audio, or 2-channel unidirectional audio, or 4-channel unidirectional audio, or 2-channel contact closure input/output or 1-channel bi-directional contact closure, or 1-channel bi-directional RS422 , or 2-channel bi-directional RS232 channel
- Supports 1080P@30,25,24, 29.97, 23.98、1080I@60,50,59.94、720P@60,50,30,25,24, 9.94, 29.97, 23.98 and 625i、525i format, when input is 1080P@29.97, 23.98、1080I@59.94、720P@59.94, 29.97, 23.98, the output is 1080P@30, 24、1080I@60、720P@60,30, 24 respectively
- With integrated cable equalizer
- Embedded ESD and surge protection circuit to prevent damage from static and thunder
- With NOP (No optical signal) alarm indications, output status indicator and input lock indicator
- With APC circuit to perform stable optical power
- RV600C provides one RS232 management interface(CONSOLE) used for CLI management
- RV600C provides one common Ethernet management interface(EMU) and one cascade management interface (EMU-EX) , supports SNMP_V1 and SNMP_V2 protocol
Application
Figure1 Application for desktop equipment
Figure 2 Application for rack mounting chassis
