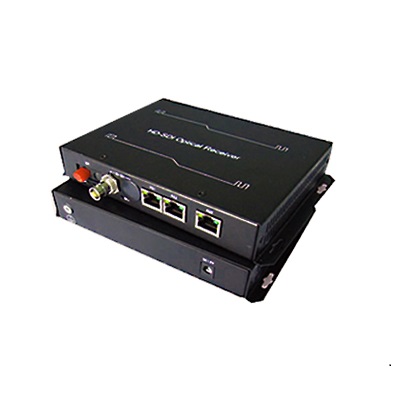

1-Channel HD-SDI Optical Transceiver(RV613P)

Overview

The RV613P is a high performance, and reliable, 1-channel SD/HD-SDI optical transceiver, which perform real-time, loss-free and high-quality video transmission（two audio embedded) over an optical line. Besides, RV613P provides two Ethernet interfaces sharing 100M bandwidth, one bi-directional RS485 data channel, and optional audio/contact closure/RS422/RS232 data transmission, which can be widely used in TV live broadcast, high-definition video conference, high-definition video monitoring, intelligent transportation system and public security system.

The RV613P includes desktop equipment and rack mounting chassis, the desktop equipment includes a transmitter named RV613PT and a receiver named RV613PR; The rack mounting chassis is used as the centralized HD-SDI receiver, adopts RV600C chassis with 19 inch width, 4U height, and with 16 1-channel HD-SDI optical receive card RV613PRK (hot- pluggable) and 1 management card, supports CLI command and SNMP_V1&V2 protocol to perform perfect management functions.

Feature

• Comply with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s
• RV613PT: one SD/HD-SDI input (BNC), one looping SD/ HD-SDI output(BNC) and two fast Ethernet interfaces(shared 100M bandwidth, supports port-based VLAN)
• RV613PR/PRK: two SD/HD-SDI output (BNC) and two fast Ethernet interfaces(shared 100M bandwidth, supports port-based VLAN)
• Two audio channel embedded
• One auxiliary channel, which can be 1-channel bi-directional audio, or two-channel unidirectional audio, or 2-channel contact closure input/output or 1-channel bi-directional contact closure, or 1-channel bi-directional RS422/RS232 channel
• One bi-directional RS485 channel, half duplex, up to 115.2Kb/s baud rate
• Supports 1080P@30,25,24, 29.97, 23.98、1080I@60,50,59.94、720P@60,50,30,25,24, 9.94, 29.97, 23.98 and 625i、525i format, when input is 1080P@29.97, 23.98、1080I@59.94、720P@59.94, 29.97, 23.98, the output is 1080P@30, 24、1080I@60、720P@60,30, 24 respectively
• With integrated cable equalizer
• Embedded ESD and surge protection circuit to prevent damage from static and thunder
• With NOP (No optical signal) alarm indications, output status indicator and input lock indicator
• With APC circuit to perform stable optical power
• RV600C provides one RS232 management interface(CONSOLE) used for CLI management
• RV600C provides one common Ethernet management interface(EMU) and one cascade management interface (EMU-EX) , supports SNMP_V1 and SNMP_V2 protocol

Application

Figure1  Application for desktop equipment

Figure 2 Application for rack mounting chassis
