RV611PT-R
넳 넲

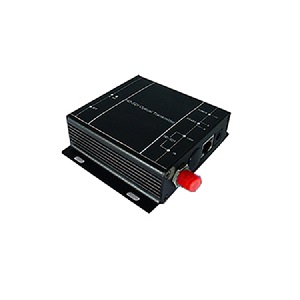

1-ch SD/HD/3G-SDI optical transceiver (RV611P)

The RV611P is a high performance, and reliable, 1-channel SD/HD/3G-SDI optical transceiver, which perform real-time, loss-free and high-quality video transmission (audio embedded) and one reversed RS485 data over an optical line, which can be widely used in TV live broadcast, high-definition video conference, high-definition video monitoring, intelligent transportation system and public security

● Download the password, please consult customer service

  • 999999999999999





    Overview





    The RV611P is a high performance, and reliable, 1-channel SD/HD/3G-SDI optical transceiver, which perform real-time, loss-free and high-quality video transmission (audio embedded) and one reversed RS485 data over an optical line, which can be widely used in TV live broadcast, high-definition video conference, high-definition video monitoring, intelligent transportation system and public security system.

    The RV611P includes desktop equipment and rack mounting chassis, the desktop equipment includes a transmitter named RV611PT and a receiver named RV611PR; The rack mounting chassis is used as the centralized HD-SDI receiver, adopts RV600C chassis with 19 inch width, 4U height, and with 16 1-channel or 2-channel HD-SDI optical receive card RV611PRK1/2(hot- pluggable), and 1 management card, supports CLI command and SNMP_V1&V2 protocol to perform perfect management functions.



    Feature



    • ■ Comply with SMPTE-292M HD-SDI standard and SMPTE-259M SD-SDI standard
    • ■ Optional SMPTE 424M 3G-SDI standard signal with bit rate of 2.97Gb/s
    • ■ RV611PT: one HD-SDI input (BNC),one HD-SDI loop output(optional)
    • ■ RV611PR/RV611PRK1: one HD-SDI output (BNC), one HD-SDI output(optional)
    • ■ RV611PRK2: Two HD-SDI output (BNC), two HD-SDI outputs(optional)
    • ■ 8 audio channels embedded
    • ■ 1080P@60,50,30,29.97, 25,24,23.98, 1080I@60,59.94, 50, 720P@60,59.94, 50,30,29.97,25,24, 23.98, and 625i, 525i
    • With integrated cable equalizer
    • ■ Embedded ESD and surge protection circuit to prevent damage from static and thunder
    • ■ With NOP (No optical signal) alarm indications, output status indicator and input lock indicator
    • ■ With APC circuit to perform stable optical power
    • ■ One reversed RS485 channel, half duplex, up to 115.2Kb/s baud rate
    • ■ RV600C provides one RS232 management interface(CONSOLE) used for CLI management
    • ■ RV600C provides one common Ethernet management interface(EMU) and one cascade management interface (EMU-EX) , supports SNMP_V1 and SNMP_V2 protocol
